Brand Name : BEFANBY
Model Number : lift platform
Certification : CE,SGS,ISO9001
Place of Origin : Henan,China
MOQ : 1 set/sets
Price : Negotiation
Payment Terms : L/C,T/T,Western Union
Supply Ability : 1500 set/sets, per year
Delivery Time : 20-30 days as usual delivery
Packaging Details : The movable lifting platform will be packed by the tarp, the parts will be shipped in the high quality wooden case.
Color : Customized
Warranty : 24 months
Load capacity : Customized
Power supply : Battery Operated
Port : Qingdao/Tianjin/Shanghai
Application : aerial working,factory,workshop,construction site
Materials : Steel
The battery transfer cart is a heavy-duty electric transport equipment that runs on fixed tracks. It uses high-performance maintenance-free batteries as a power source and is suitable for large-tonnage material handling needs in various industrial scenarios. This vehicle model is designed with a steel splicing structure and has a load capacity of up to 10 tons. The body structure is sturdy and runs smoothly. It can efficiently complete the task of transporting heavy materials such as molds, steel, and equipment parts between processes. The battery-powered mode does not require an external power supply and is flexible in operation. It is particularly suitable for medium- and long-distance, frequent operation work environments. The equipment supports remote control operation and can customize the table structure, control system, and additional functions according to customer needs.

| Model | KPX-2T | KPX-5T | KPX-10T | KPX-16T | KPX-20T | KPX-25T | KPX-30T | KPX-40T | KPX-50T | KPX-63T | KPX-80T | KPX-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai Ilnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Running distance(m) | 25 | 25 | 25 | 25 | 30 | 30 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | 10.5 | 12.3 | 14.1 | 26.2 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |





Product Tap: Material Handling Cart , Rail Transfer Cart
|
|

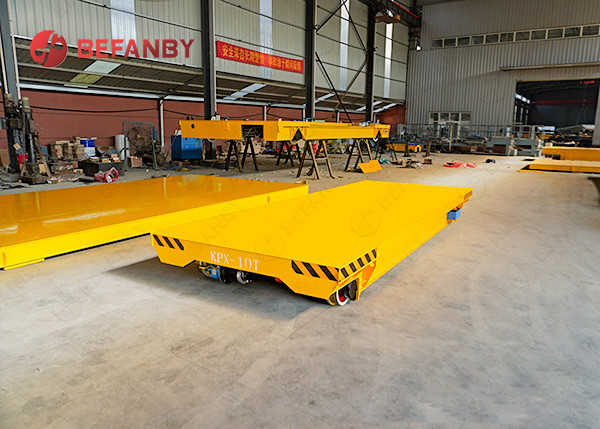

10 Ton Warehouse Handling Railway Battery Operated Transfer Cart Images |
